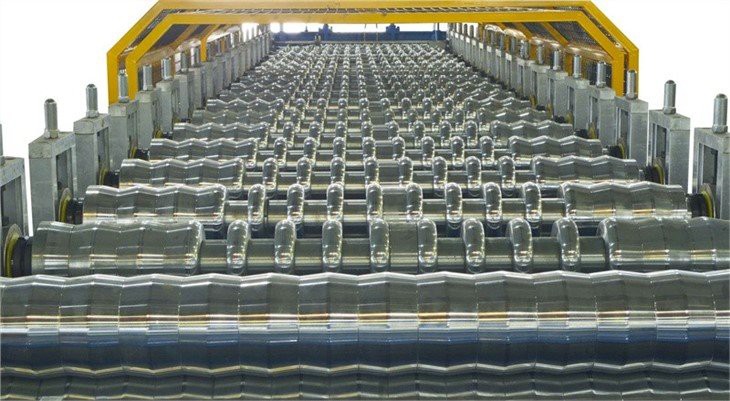

Corrugated Roof Sheet Making Machine

1. Introduction From Reliance （Xiamen）Industry Co.，Ltd

Introduction to common model and thickness of corrugated plate:

Crest height: 18mm

Common width: 836mm 825mm

Common thickness: 0.7 ~ 1.2mm

Common materials: titanium zinc / Swire copper / aluminum manganese magnesium

Aluminum alloy (aluminum magnesium manganese plate) corrugated plate (corrugated plate)

Aluminum alloy plate wall system

It is applicable to the external walls of various buildings. It has a unique aesthetic feeling of building curve, and integrates the building functions of ventilation, waterproof, thermal insulation, sound insulation and so on.

Aluminum alloy plate wall system

1. Reinforced support of bottom plate

2. Auxiliary support

3. Bottom plate

4. Corrugated plate auxiliary support

5. Decoupling

6. Sound absorbing cotton

7. Insulation cotton

8. Corrugated plate (18 / 76)

9. Fasteners

Material selection: aluminum magnesium manganese alloy with strong corrosion resistance and long service life is adopted, and the service life of the system can reach more than 50 years Advantages of aluminum magnesium manganese wall system (corrugated plate system):

No connection port, no screw hole, and the appearance of the building is complete

It can be made into inner arc and outer arc

You can choose different materials and colors

Overall structural waterproof and drainage function

Excellent wind pressure resistance (with the base plate), especially suitable for areas with typhoons and storms

It can eliminate the pressure caused by heat expansion and cold contraction

Simple and fast machine winding, convenient and economical construction

Easy to lay thermal insulation and sound absorption layer

No chemical caulking glue is required to avoid pollution and aging

The wall does not need maintenance

Features of corrugated plate system:

The unique typical sine wave smooth lines highlight its complex and exquisite peculiar effects. Various installation methods, i.e. horizontal, vertical or diagonal installation, can not only cooperate with the complex panel structure, but also easily realize the visual layered effect between curtain wall panels. The subtle effect produced by the crisscross of scenes can create a fascinating visual feeling in a large area.

2. Specifications/Technical parameters

3. Product detail

1. Application: common building roof system, construction materials, shop etc.

2. Original: Xiamen, China

3. Certification: ISO9001, CE etc.

4. Price: Negotiable

5. Voltage: 380V 50Hz, the voltage can be as local demand

6. Payment term: TT, LC

7. Delivery date: Negotiable

8. Packing: Naked package with poly wood case for control box

9. Market: ASEAN/Middle East/ South Asia/North America/Russia

10. Warranty: 1 year

4. Certificates

5. Our factory

Our factory was established in 2014, which covers an area of MORE THAN 10,000 SQUARE METERS. With 20 YEARS PROFESSIONAL EXPERIENCE, Meanwhile, we are the main drafter standard of China Non-standard roll former manufacturer and exporter of high quality roll forming machines in China. We are an ISO9001 approved company, and have European CE certification

6. Advantage

1. Fully automated, orders are recorded and production orders are executed precisely;

2..High forming efficiency; the customized manufacturing line's fastest speed may reach 60 meters per minute.

3. Less material waste, lower manufacturing costs, and less reliance on people.

4. We can provide OEM and ODM services.

7. FAQ

1> How long do RELINACE machines come with a warranty?

The machine comes with a one-year warranty from the time it leaves the factory.

2>Are you a manufacturer or a distributor?

We are a manufacturing and a trade firm.

3>Can we provide support services as a new company?

We will address the problem of raw material (steel coil) procurement, operation and installation training, and product information counseling as part of our pre-sale service.

8. EXHIBITIONS/MEETINGS

9. Direct Contact Information

Why choose us?

• We take pride in providing customers with high-quality Roof Sheet Making Machine products and excellent customer service.
• Our company is a Corrugated Roof Sheet Making Machine manufacturer integrating R&D, manufacturing, marketing and service.
• We provide Roof Sheet Making Machine products that offer unparalleled performance, durability, and value.
• The company has established a running mechanism and corporate governance structure to adapt to the development of the modern market economy, with reasonable management levels, institutional settings, and sound and perfect management systems.
• Our Roof Sheet Making Machine products are designed to meet the needs of our customers and offer excellent value.
• It is the key to win the enterprises in the new economic era to understand the needs of knowledge-based employees, design effective incentive mechanism and mobilize their enthusiasm.
• As a factory, we manufacture Roof Sheet Making Machines with superior quality and at economical prices.
• The company has a large number of professional and technical personnel, and there are professional technical personnel to do service work for the use of Corrugated Roof Sheet Making Machine, which can solve difficult problems for users in a timely manner.
• We’re a Chinese factory specializing in high-quality Roof Sheet Making Machine products and professional services.
• Our company sincerely hopes to establish good trade relations with new and old customers on the basis of mutual benefit and friendly cooperation. We welcome all units to come and write to our company for guidance.
