Round Downspout Machine
Round Downspout Machine mainly produces steel formed pipe which it’s different from PVC pipes on the market. Due to the use of steel plate or aluminum plate forming, the cost is greatly reduced, and the surface color can be selected according to the building structure, and the length can be produced according to the project height, solving the original problem.
Product Introduction
1. Introduction From Reliance （Xiamen）Industry Co.，Ltd
Round Downspout Machine mainly produces steel formed pipe which it’s different from PVC pipes on the market. Due to the use of steel plate or aluminum plate forming, the cost is greatly reduced, and the surface color can be selected according to the building structure, and the length can be produced according to the project height, solving the original problem. There are some disadvantages that PVC pipe cannot change. In addition, the round downpipe has a beautiful appearance, and is generally pre-treated with a protective film, so the construction is convenient, and it is not easy to damage the paint, so as to maximize the protection and prolong the service life.
2. Specifications/Technical parameters
3TonX500mm Mandrel Un-Coiler | Manual expansion coil-inner-hole with 4 palms； Link-connect expanding system Drag off turning type Load capacity=5Ton；Coil Inner – diameter: 510±30mm Coil outer-diameter=Max. 1200 mm Coiler Width=Max. 600 mm |

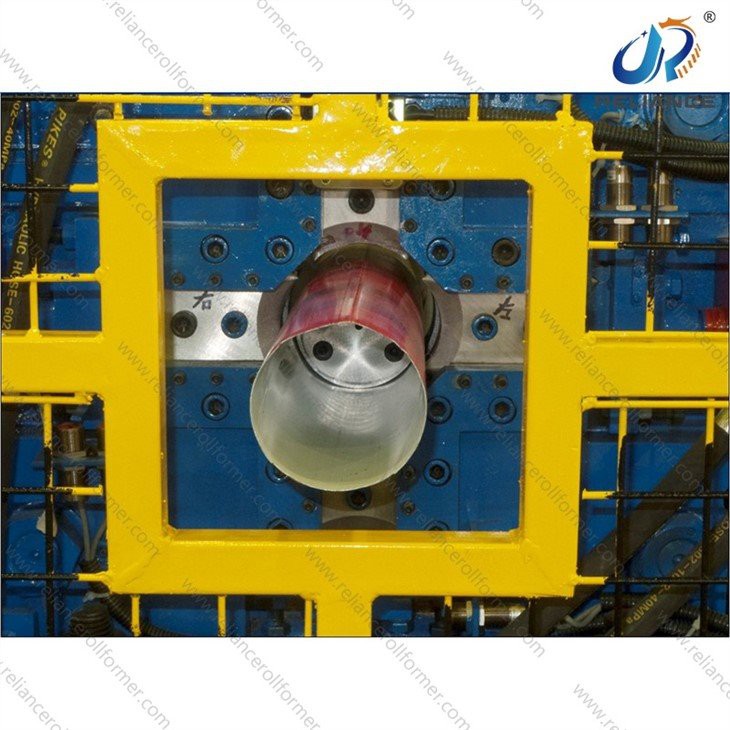

Round Downspout Machine | Feeding section with guide; Gear/Sprocket driving, 16 steps to form Wall-plate-frame design with magnetic gear cover Rollers manufactured from 45#steel, CNC lathes, hard Chrome Coated Shafts Diameter=ф75mm, High Precision Machined Main motor =7.5 KW, Frequency speed control Max line speed of roll former 12m/min |
Abrasive Cut-off Machine | Cut by manual operation |
PLC Control System | Control the quantity & cutting length automatically. Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc Control Voltage: 24V Convenient portable controller with FWD/BKD/E-Stop buttons Cut-to-length tolerance≤±2 mm |
ELBOW MACHINE FOR UPWARD RAINSPOUT PROFILE | Including the shrinking device for easy join downspout, motor driven: 3KW Can curve the rainspout degree minimum 90degree |
3. Product detail
1. Application: factories, warehouses, garages, airports, stadiums, exhibition halls, theaters
2. Original: Xiamen, China
3. Certification: ISO9001, CE etc.
4. Price: Negotiable
5. Voltage: 380V 50Hz, the voltage can be as local demand
6. Payment term: TT, LC
7. Delivery date: Negotiable
8. Packing: Naked package with poly wood case for control box
9. Market: ASEAN/Middle East/ South Asia/North America/Russia
10. Warranty: 1 year
4. Certificates
5. Our factory
Our factory was established in 2014, which covers an area of MORE THAN 10,000 SQUARE METERS. With 20 YEARS PROFESSIONAL EXPERIENCE, Meanwhile, we are the main drafter standard of China Non-standard roll former manufacturer and exporter of high quality roll forming machines in China. We are an ISO9001 approved company, and have European CE certification
6. Advantage
1. OEM/ODM (Original Equipment Manufacturer/Original Design Manufacturer) service
2. The equipment setup is simple to select.
3. All of our technology advancements have one purpose in mind: to achieve the highest possible quality, even if it implies greater expenses and reduced productivity.
4. The machine has a high forming output, runs at a fast speed, and has a steady operation, which enhances the yield rate.
7. FAQ
1. What are your preferred payment terms? Is it possible to get both FOB and CIF prices?
TT and LC are our standard payment arrangements. Please let us know the exact location.
2 The following modes of transportation are available to visit our factory:
A: Fly to Xiamen Airport; advise us of your flight number, and we'll arrange for someone to pick you up from the airport and take you straight to the plant (about 20 minutes).
B: Take a bullet train to Xiamen North Station: Take any domestic high-speed train to our Xiamen North Station, advise us of your train itinerary, and we'll arrange for someone to pick you up and bring you to the plant (about 20 minutes).
3. How can you be sure that your equipment has been thoroughly tested and inspected before to delivery?
A: A copy of the equipment test inspection report or a video of the equipment in operation will suffice as proof.
B: If the client furnishes test materials, we will give the tested samples or data to you.
4. Do you provide services for installation and commissioning at abroad?
Machine installation and operation training tailored to the needs of the customer are available.
8. EXHIBITIONS/MEETINGS
9. Direct Contact Information
Why choose us?
- We are proud to be the supplier and manufacturer of Downspout Machines in China.
- For the enterprise system, strategy, technology, market, quality, management, culture and other aspects, we have improved the enterprise innovation work system and relatively perfect management methods.
- Our factory is equipped with the latest technology and machinery to produce the best Downspout Machines.
- We believe in long expression and trusted relationship for Round Downspout Machine.
- We use the latest software to design and manufacture our Downspout Machines to exact specifications.
- We actively share the fruitful results of corporate development with employees, users, investors and the public.
- We have a team of professionals committed to delivering the best Downspout Machines and services to our clients.
- We hope to sell Round Downspout Machine with a larger scale and higher technical content in the market and stand out from the competition of other products.
- We have a team of trained engineers who are always available to assist with any technical issues relating to our Downspout Machines.
- Our company mainly deals in Round Downspout Machine, and can also develop and design related products according to customer requirements.
