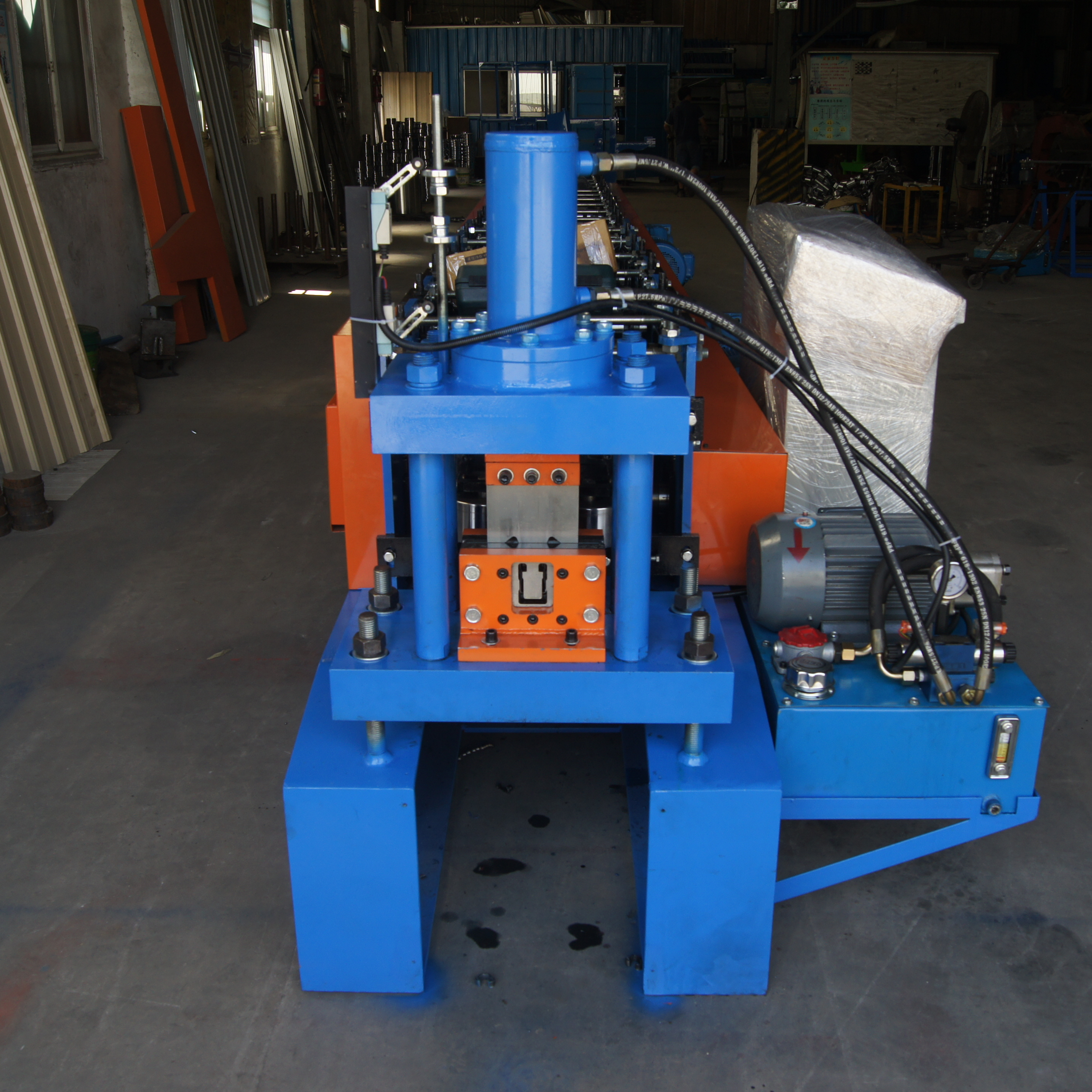

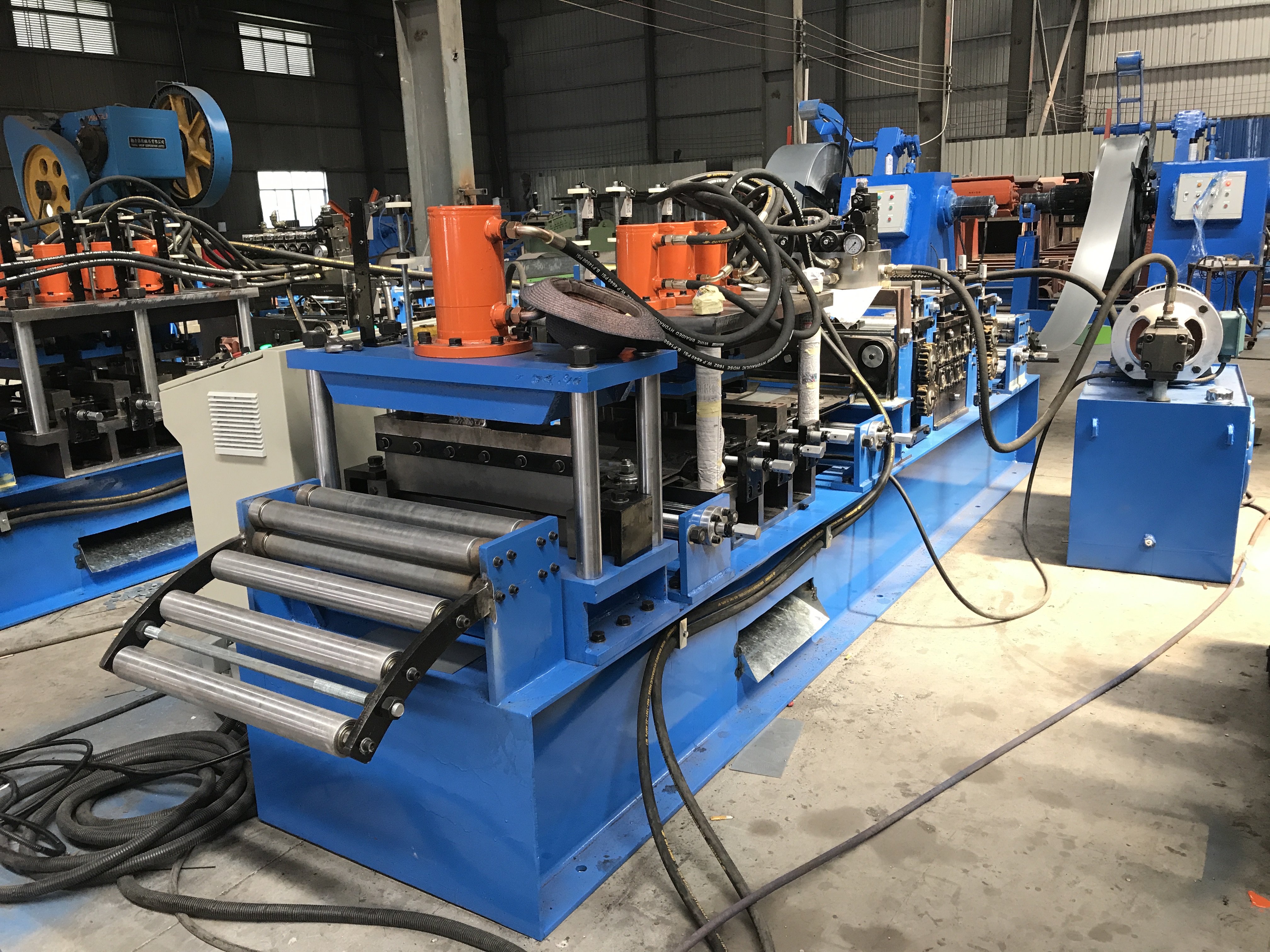

Solar Panel Frame Roll Forming Machine

Description

This Solar Panel Frame Roll Forming Machine is used in the manufacturing process of solar panel frame, which can roll the metal plate into the required shape and size during production to produce the frame to fix the solar panel in place. It is operated by software during production, allowing the manufacturer to input the required frame size, and the machine automatically generates the frame by rolling raw materials into the required shape and size. Most importantly, the equipment has an amazing production capacity of 15 meters per minute. This high throughput ensures the rapid production of the framework, enabling you to meet the urgent project deadline and complete large-scale orders efficiently.

Features

1. Cost-saving: This Solar Panel Frame Roll Forming Machine adopts automatic operation flow design, which has efficient production flow and less material waste, and is helpful to optimize production cost.

2. Safety protection function: it is equipped with perfect safety protection mechanism, including emergency stop button, interlock protection device and overload protection to ensure the safety of operators during operation.

3. Solid structure: This molding machine is made of high-quality materials and precision engineering, with excellent durability and stability. Its sturdy structure ensures a long service life, even under heavy load operation.

4. Customized service: It can be customized to meet the needs and requirements of manufacturers. You can add special designs to the machine, such as including extra modules or functions to enhance its functions and meet specific production needs.

Application

• Solar power plant: Large solar power plants rely on a large number of solar panel frames to support solar panels in the best direction. The high production capacity of this machine is especially beneficial for this kind of project.
• Residential solar installation: For residential solar installation, this machine is helpful to efficiently produce the frame needed to install solar panels on the roof.
• Commercial and industrial solar energy projects: Commercial buildings and industrial facilities usually install solar panels to offset energy costs and reduce carbon footprint, which helps to quickly produce the framework of these projects.

Essential Details

Type: Steel Frame & Purlin Machine Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works, Other Showroom Location: Viet Nam, Philippines, Brazil, Peru, Indonesia, India, UAE Video outgoing-inspection: Provided Machinery Test Report: Provided Marketing Type: New Product 2020 Warranty of core components: 1.5 years Core Components: Engine, Bearing, Gearbox, Motor, Gear, Pump Condition: New

Work Pressure: 240Mpa Production Capacity: 15m/min Place of Origin: Fujian, China Name: Solar Panel Frame Roll Forming Machine Voltage: 380V 50Hz 3phases Power: 25KW Dimension(L*W*H): 15000mm*1000mm*2500mm Weight: 15000 kg Warranty: 1 Year Key Selling Points: High Safety Level

Supply Ability

Supply Ability: 30 Set/Sets per Month

Packaging & delivery

Packaging Details: Containerized loading and fixing, plc with pollywood case pack.

Port: Xiamen Port, China

Lead time:

Quantity(sets)	1 - 1	>1
Lead time (days)	100	To be negotiated

Product Description

Specification

Item	Value
Type	Steel Frame & Purlin Machine
Applicable Industries	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works , Other
Showroom Location	Viet Nam, Philippines, Brazil, Peru, Indonesia, India, UAE
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1.5 years
Core Components	Engine, Bearing, Gearbox, Motor, Gear, Pump
Condition	New
Work Pressure	240Mpa
Production Capacity	15m/min
Place of Origin	China
	Fujian
Brand Name	RELIANCE
Voltage	380V 50Hz 3phases
Power	25KW
Dimension(L*W*H)	15000mm*1000mm*2500mm
Weight	15000kg
Warranty	1 Year
Key Selling Points	High Safety Level

Packing & Delivery

Containerized loading and fixing, plc with pollywood case pack.
