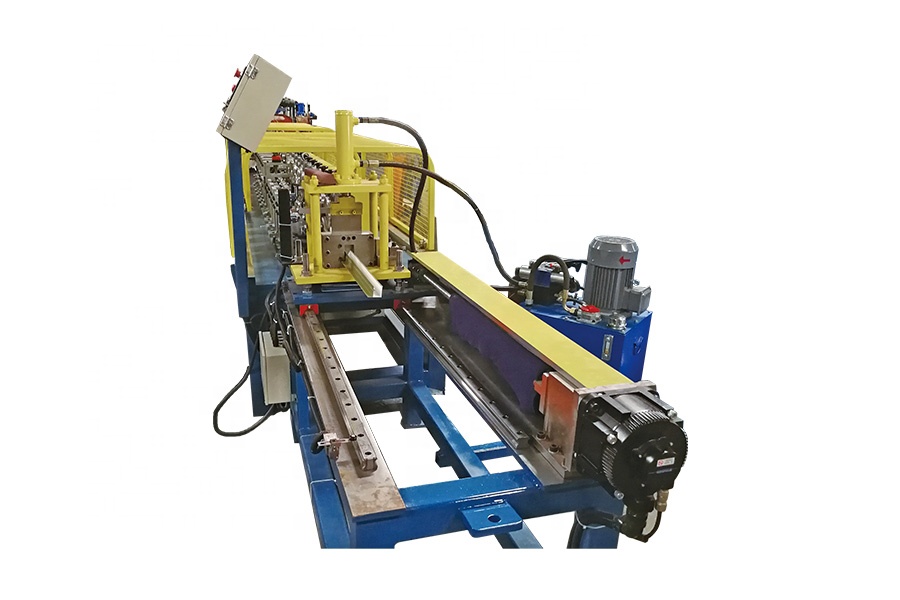

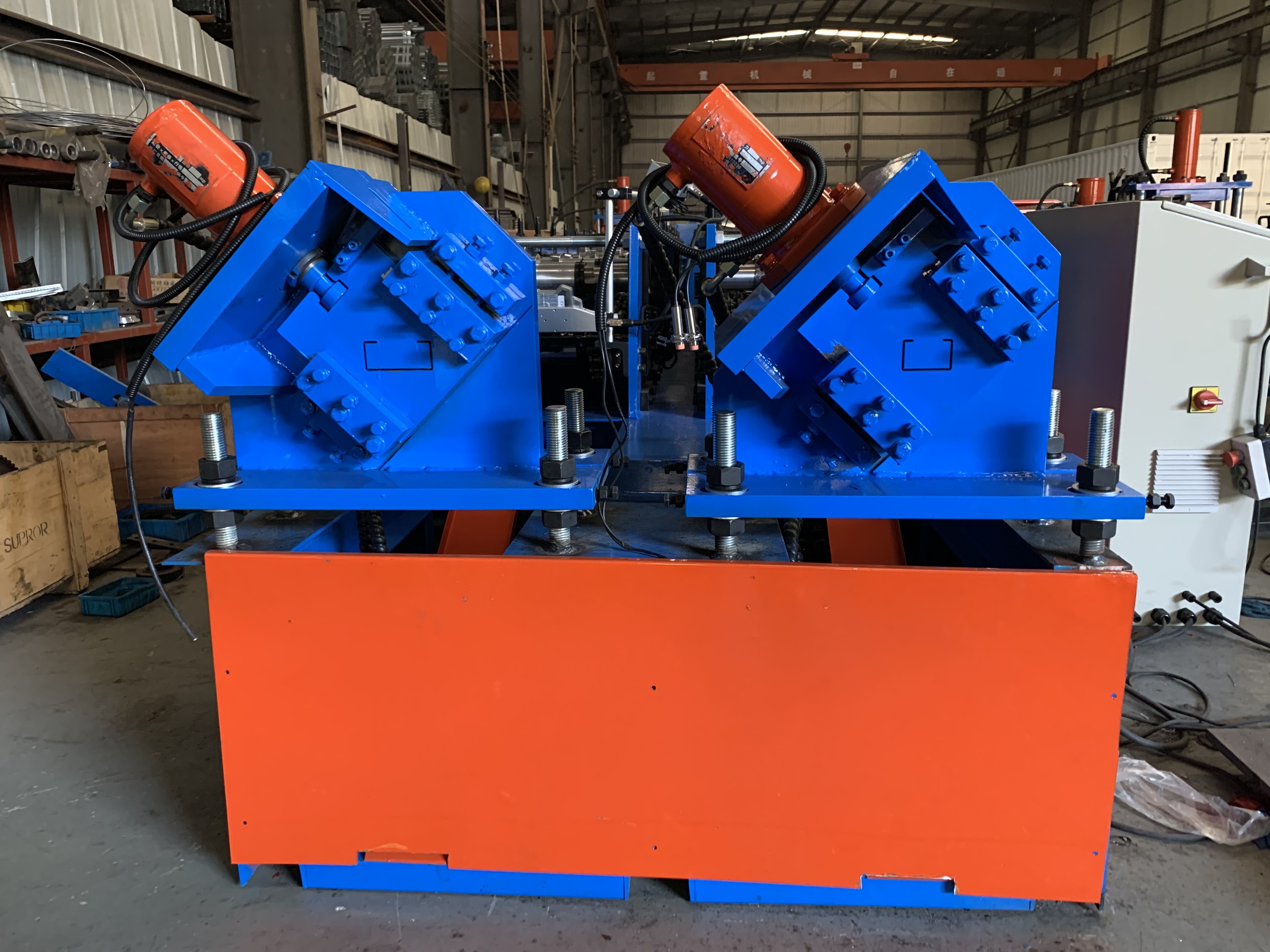

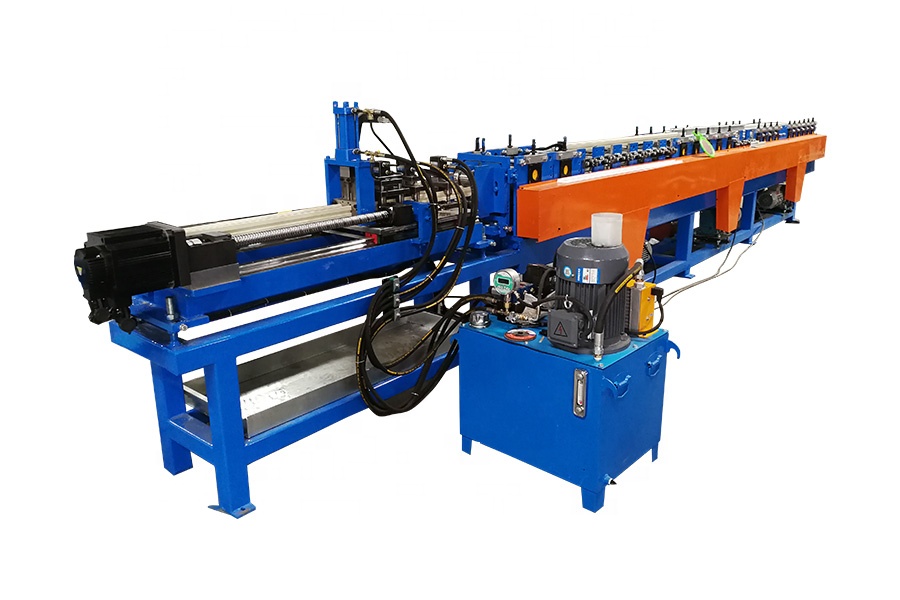

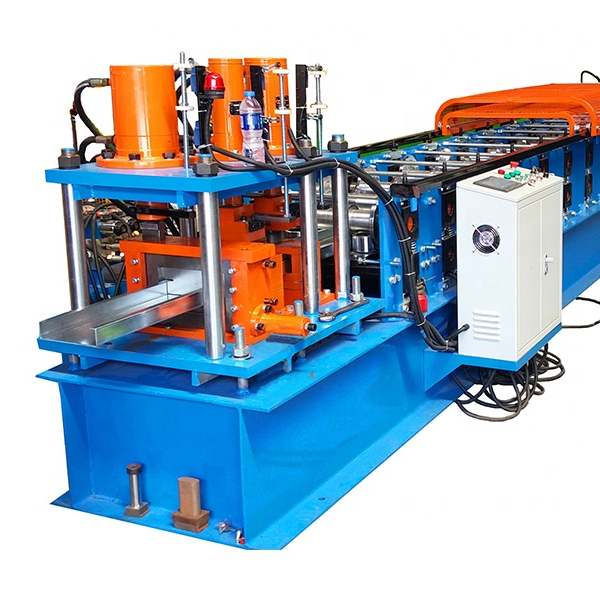

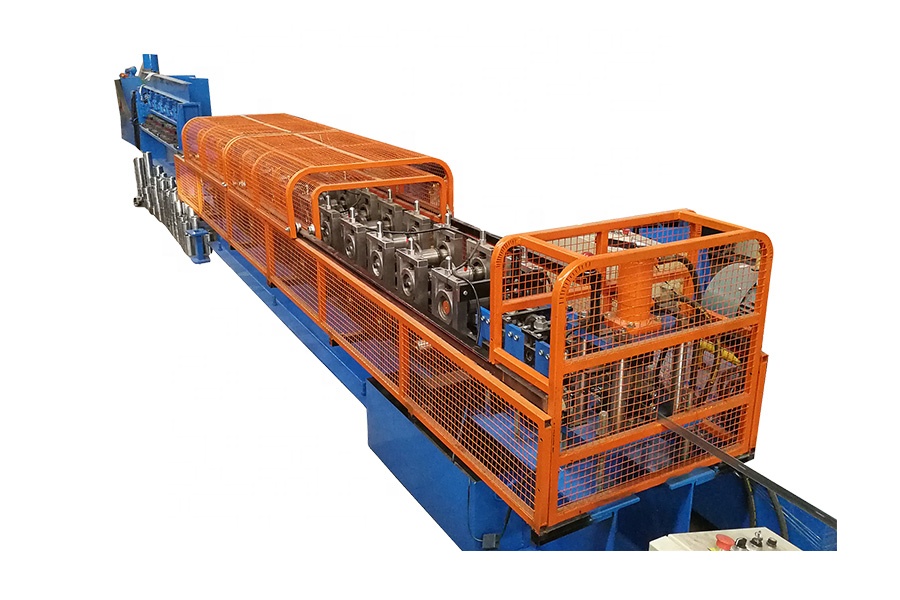

High Speed Stud And Track Roll Forming Machine

Description

This High Speed Stud And Track Roll Forming Machine is a multifunctional and efficient equipment, aiming at producing studs and tracks with high speed and precision. It is equipped with innovative functions, including ball bearings and straightening devices, to ensure that the required products can be quickly formed. This high-speed operation has significantly improved the overall productivity, enabling manufacturers to meet urgent project deadlines and efficiently complete large orders. It is equipped with ball bearings to ensure smooth and friction-free movement during roll forming. This can reduce wear, prolong the service life of the machine and ensure long-term stable performance.

Features

1. Straightening device: This High Speed Stud And Track Roll Forming Machine is equipped with straightening device to ensure that the output beam, stud and track are completely straight. This function ensures the uniformity and accuracy of the finished product and minimizes the need for further processing or adjustment. 2. Forming technology: The equipment has advanced PLC control system, which can be adjusted to have different sizes and thicknesses to produce different types of studs and tracks. 3. High output: its quick switching setting makes it improve the efficiency of manufacturing process, reduces the need for additional processing or rework, and does not need manual adjustment, further simplifying production. 4. Cost saving: The high-speed operation of the machine and the straightening device save time and resources, reduce the labor force and reduce the waste of raw materials, thus saving costs and bringing environmental benefits.

Application

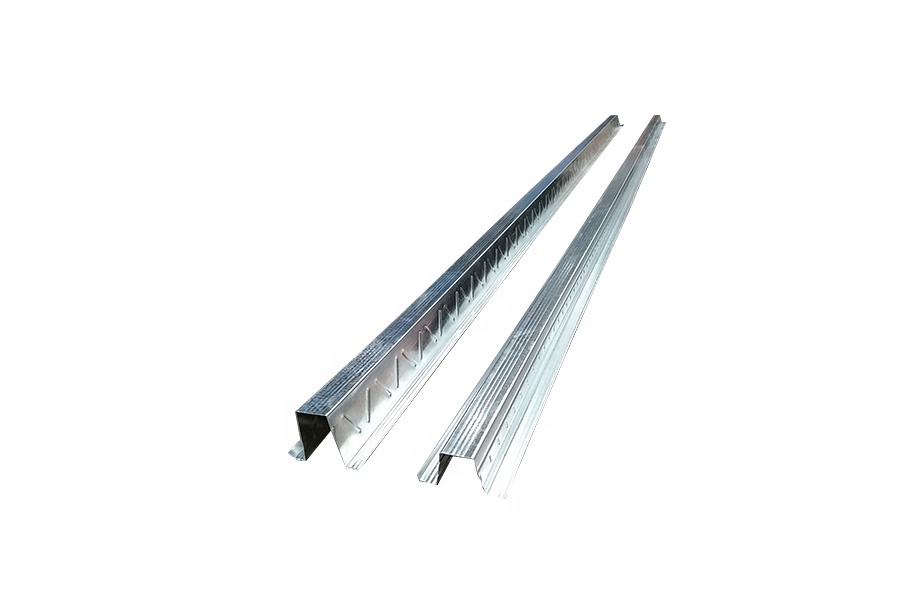

This High Speed Stud And Track Roll Forming Machine is widely used in construction, infrastructure and manufacturing. It is suitable for producing all kinds of studs and tracks, including drywall studs, ceiling passages, wall partitions, floor joists and roof trusses. This machine is very suitable for residential and commercial buildings, warehouses, factories and other industrial structures.

Essential Details

Type: Steel Frame & Purlin Machine Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Restaurant, Home Use, Construction works Showroom Location: Viet Nam, Philippines, Indonesia, India, Russia, UAE, Malaysia Video outgoing-inspection: Provided Machinery Test Report: Provided Marketing Type: New Product 2020 Warranty of core components: 2 years Core Components: PLC, Bearing, Pump

Condition: New Work Pressure: 10Mpa Production Capacity: 30-40m/min Place of Origin: China Voltage: 380V 50Hz 3phases Power: 5.5kw Dimension(L*W*H): 5000mm*900mm*1300mm Weight: 2500 kg Warranty: 2 years Key Selling Points: High Safety Level

Supply Ability

Supply Ability: 30 Set/Sets per Month

Packaging & delivery

Packaging Details: Containerized loading and fixing, plc with pollywood case pack.

Port: Xiamen Port, China

Lead time:

Quantity(sets)	1 - 1	>1
Lead time (days)	60	To be negotiated

Product Description

Specification

Item	Value
Type	Steel Frame & Purlin Machine
Applicable Industries	Hotels, Building Material Shops, Manufacturing Plant, Restaurant, Home Use, Construction works
Showroom Location	Viet Nam, Philippines, Indonesia, India, Russia, UAE, Malaysia
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	2 years
Core Components	PLC, Bearing, Pump
Condition	New
Work Pressure	10Mpa
Production Capacity	30-40m/min
Place of Origin	China
Voltage	380V 50Hz 3phases
Power	5.5kw
Dimension(L*W*H)	5000mm*900mm*1300mm
Weight	2500kg
Warranty	2 years
Key Selling Points	High Safety Level

Packing & Delivery

Containerized loading and fixing, plc with pollywood case pack.

FAQ

1. Who are we?
We are based in Fujian, China, start from 2018, sell to Southeast Asia(40.00%), South Asia(20.00%), Domestic Market(12.00%), Mid East(10.00%), North America(5.00%), Oceania(5.00%), South America(3.00%), Africa(2.00%), Eastern Asia(2.00%), Central America(1.00%). There are total about 5-10 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Roll forming machine, CZ purlin machine,metal roof sheet machine, slitting machine, cut to length machine.

4. Why should you buy from us not from other suppliers?
RELIANCE MACHINE (formally named as Xiamen Reliance M&N Machinery Industries Co., Ltd) was established in 2016, which covers an area of MORE THAN 10,000 SQUARE METERS. With 20 YEARS PROFESSIONAL EXPERIENCE.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW；
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, L/C, Cash;
Language Spoken: English, Chinese
