Cut To Length Line

Cutting Width (mm): 500 - 1500 mm

Material Thickness(mm): 0.5 - 4 mm

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2019

Warranty of core components: 1 Year

Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pump

Cutting Speed(m/min): 60 - 100 mm

No. of Slitting Lines: 1 - 13

Coil Weight (T): 15 T

Place of Origin: Fujian, China

Brand Name: RELIANCE

Condition: New

Voltage: BASIS ON CUSTOMER LOCAL STANDARD

Rated Power: 220KW

Dimension(L*W*H): 20X7X1.8M

Weight: 45TON

Key Selling Points: High-accuracy

Warranty: 1 Year

Applicable Industries: Farms, Construction works, Building Material Shops, Manufacturing Plant, Other

Showroom Location: None

Product name: CUT TO LENGTH

After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service, Online support, Free spare parts, Video technical support

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location: None

Quantity(sets)

1 - 1

>1

Lead time (days)

120

To be negotiated

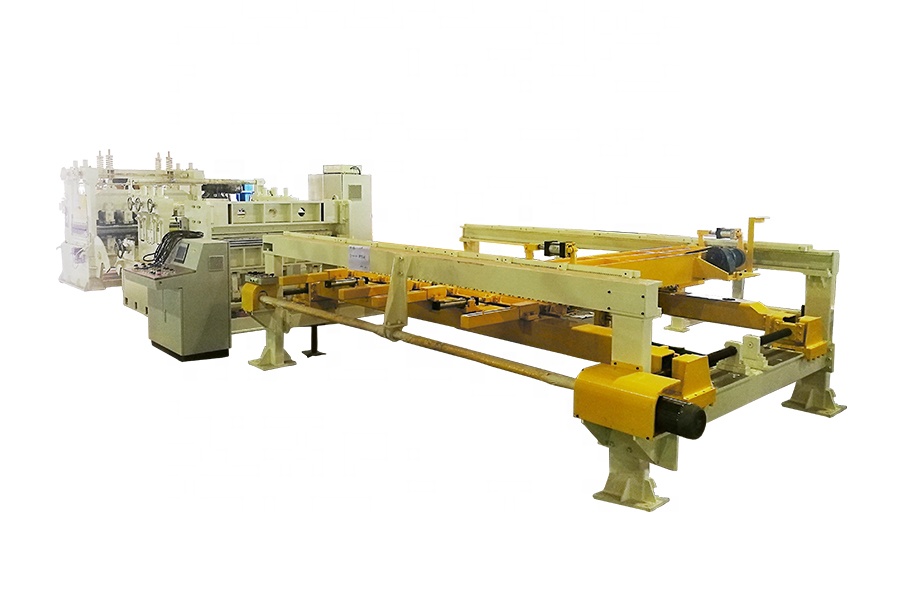

Cut to length line can do uncoiling, cutting and stacking works, make coil steel to any needed length pieces of metal sheet. It mainly includes
coil car, uncoiler, coil guide, shearing machine, stacker, hydraulic system, Etc. It
mainly used in coil or hot rolling carbon steel, silicon steel and all the other kinds of metal materials with surface spreading.
This line can be adjusted to do recoiling or dividing work to meet customer's demand. Besides, slitting control is also
available.

INPUT:
Material – GI and aluminum
Coil OD: 1600 MM
Coil ID: 508MM
Coil Width: 1300MM (Max.)
Thickness: 0.5MM -3.0MM (Max.)
Coil Weight: 10~15Tons

OUT PUT:
Slitting speed: 60m/min max
Maximum cut length - 4000 mm;
Width tolerance: +/-0.05 mm
Total power: about 220KW.
Power : 380V, 3 phrase and 60HZ

1. Coil car
2. Decoiler
3. Leveler with entry pinch roll for cut to length line system
4. Measuring Roller for cut to length line system
5. Mechanical side guide
6. Hydraulic shearing machine for the cut to length line system
7. Lifting table for stacking in the entry loop for the cut to length line system
8. Mechanical side guide and guide roll

9. Loop table
10. exit coil car
11. Hydraulic Systems
12. Pneumatic Systems
13. Electric Systems

PLC（Siemens）, Touch Screen（Siemens）,Encoder（Omron）

All Document related to this project will be in English.
All communication (Verbal and Written) during the implementation of the project will be in English.
All relevant standards will be adhered to in preparation of engineering drawings and documentation.
Documentation will be prepared by using following software / tools:
Microsoft Office tools (Word, Excel, etc …).
AutoCAD.
Documentation will be delivered in three sets of paper copies and in CD
