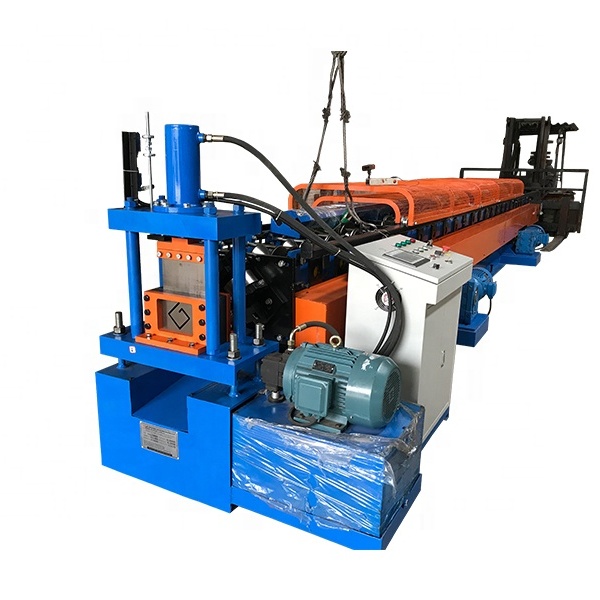

Door Guide Roll Forming Machine
Brand Name: RELIANCE
Voltage: Basis on Customer local standard
Power: 15.5KW
Dimension(L*W*H): 10000*900*1000
Warranty: 1 Year
Product Introduction
Door guide roll forming machine is an advanced production equipment specially designed by our factory to meet the needs of producing high-quality door guide rails, and it is an indispensable product in the door manufacturing industry. With its high-quality electrical components and high-precision Cr12 tool material, it can produce highly accurate door guide rails, thereby increasing end-user satisfaction and loyalty. This machine has a production line with a production capacity of 18~25m/min, which ensures that a large number of door guide rails can be produced in a short time. Secondly, it is easy to operate and requires minimal maintenance, because it adopts a modular structure design and is equipped with a user-friendly operation interface and PLC system, which saves time and money for customers. This machine can produce door guide rails in different lengths, widths and thicknesses, designed to meet diverse usage needs.
Features
1. This machine has a long service life, high reliability and low failure rate because its structure is made of galvanized steel, and it is also equipped with electrical components from famous brands such as Siemens, Schneider and Omron.
2. Through the PLC system, the operator can adjust or control the speed and other parameters of the machine at any time to ensure that the final product meets its specifications. Therefore, this machine can increase efficiency.
3. The rollers have a more wear-resistant surface after heat treatment and hard chrome plating, so it is very durable and can save costs for a long time.
4. This door guide roll forming machine is equipped with a 15.5KW high-power motor, so its processing efficiency is very high. Moreover, it is capable of variable frequency speed regulation, designed to meet different processing needs.
Essential Details
|
Showroom Location: None Video outgoing-inspection: Provided Machinery Test Report: Provided Marketing Type: Ordinary Product Warranty of core components: 1 Year Core Components: PLC, Engine, Motor, Gear, Pump Condition: New Production Capacity: 18~25 m/min Place of Origin: China |
Brand Name: RELIANCE Voltage: Basis on Customer local standard Power: 15.5KW Dimension(L*W*H): 10000*900*1000 Warranty: 1 Year Key Selling Points: Easy to Operate After-sales Service Provided: Training, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service Local Service Location: Viet Nam, Philippines, Indonesia, India, Russia, Thailand, Malaysia, UAE |
Supply Ability
Supply Ability: 30 Set/Sets per Month
Packaging & delivery
Packaging Details: Container loading and fixing, plc control system with polly wood case
Port: Xiamen Port, China
Lead time:
|
Quantity(sets) |
1 - 1 |
>1 |
|
Lead time (days) |
90 |
To be negotiated |
Product Display
Specification
|
Thickness 2.0~2.8mm is for inspection, common use |
Feed-in Device Gear/Sprocket driving, 22-step to form |
|
PLC (Siemens), Inverter (Schneider), Touch Screen (Siemens), Encoder(Omron) |
Rollers manufactured from 40Cr, CNC lathes, Heat Treatment(HRC48~52), Hard Chrome, Fine Polish |
|
Stop to Cut, Post Cut, Blanking cut |
Main Motor=11KW, Frequency speed control |
Packing & Delivery
To better ensure the safety of your door guide roll forming machine, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
It can design for one size or different size with spacer changing or advance automatic change basis on request.
Why choose us?
- Our manufacturing process is streamlined to ensure fast production and delivery of Shutter Door System Machines.
- We can not only guarantee the quality of our products, but also deliver them quickly.
- We have a dedicated research and development team that works tirelessly to improve our products.
- We believe that our high quality products will enable you to place trial orders with us.
- Our factory is equipped with cutting-edge technology and skilled workers to produce high-quality Shutter Door System Machines.
- We constantly improve the cost performance to maintain the competitive advantage of our main Door Guide Roll Forming Machine in the market, and constantly develop application fields to maintain the leading position of our core products in the market.
- We offer customized Shutter Door System Machines that are designed to meet specific customer needs.
- We guarantee all the necessary steps in Door Guide Roll Forming Machine production, which is very helpful to obtain high user satisfaction.
- We are committed to continuous improvement and invest in the latest technology to enhance our manufacturing capabilities.
- Innovation is our unremitting pursuit, quality assurance is our eternal concept, customer satisfaction is our greatest wish. We always pursue the good quality of products.
